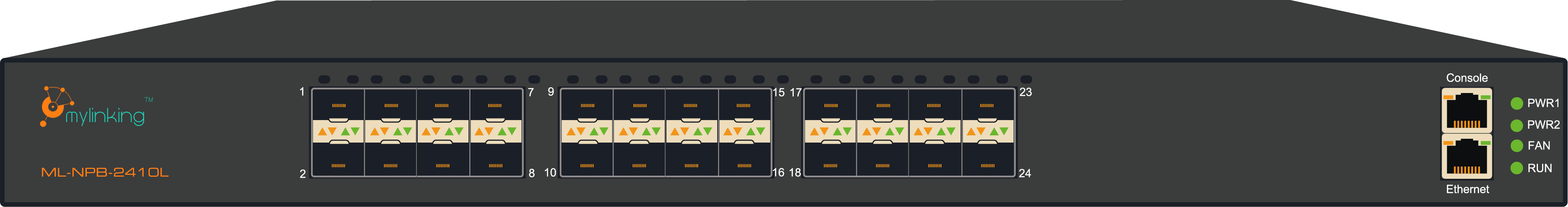

Mylinking™ Network Packet Dillalan (NPB) ML-NPB-2410L

24*10GE SFP+, Max 240Gbps, Fakitin PCAP Kama

Takaitaccen Bayani:

Kuma Mylinking ™ ML-NPB-2410L Network Packet Broker(NPB) ya dogara ne akan guntu na gida, tsarin gaba ɗaya na Ganuwa Data, Gudanar da Haɗin Haɗin Bayanai, Gabatarwa da Sake Rarraba samfuran samfuran. Yana iya gane tarin tattarawa da liyafar bayanan hanyar haɗin yanar gizo na wurare daban-daban na cibiyar sadarwa da nodes ɗin musanya daban-daban. Ta hanyar ginanniyar bincike da injin sarrafa bayanai na na'urar, ana gano ainihin bayanan da aka kama daidai, an tantance su, an taƙaita su da lakabi, kuma ana rarraba ainihin bayanan da fitarwa. Ƙarin saduwa da kowane nau'in bincike da kayan aiki na saka idanu don hakar ma'adinan bayanai, Binciken yarjejeniya, Binciken Sigina, Binciken Tsaro, Gudanar da Hadarin da sauran zirga-zirgar da ake buƙata.

Aika mana imel

Cikakken Bayani

Tags samfurin

1-Bayyanawa

Mylinking™ Network Packet Dillalan (NPB) na ML-NPB-2410L, tare da 24*1G/10G SFP+ mai jituwa dubawa, SFP+ dubawa;

● Taimakawa L2-L7 Ayyukan Tacewar Bayanan Layi

● Yana goyan bayan fakitin rufewa mai sassauƙa

● Yana goyan bayan Ƙarshen Ramin, Gane Fakiti

● Taimako don ƙara Tambarin lokaci zuwa fakiti

● Yana goyan bayan MTU 18 ~ 16127 keɓance kewayon

● Yana goyan bayan fakitin sabis na tashar jiragen ruwa Ana ɗauka bisa ga ƙa'idodin tacewa

● Yana goyan bayan Kanfigareshan Tashar Intanet na Hotuna;

● Yana goyan bayan 240Gbps Traffic Processing Capability;

● Yana goyan bayan aikin da ya dace na rami na ciki/ waje, Ramin Layer na ciki Hash Load Daidaita

● Yana goyan bayan slicing fakiti bisa ga tuple, kuma tsawon ajiyar yanki shine 4/96/128/192/256/512 bytes;

Halayen da ke sama suna ba da garantin Aiwatar da Gudun Tsarin layi.

● CikakkeDNa'urar Ganin Ganuwa (24*1/10GE SFP+ Ramummuka)

● Cikakken Na'urar Gudanar da Jadawalin Bayanai (24*1GE/10GE duplex Rx/Tx aiki)

● Cikakken na'urar da aka fara aiwatarwa da sake rarrabawa (bandwidwidiyyar bidirectional240Gbps)

● Tarin tallafi da karɓar bayanan haɗin kai daga wurare daban-daban na cibiyar sadarwa

● Tarin da aka goyan baya & liyafar bayanan hanyar haɗin kai daga nodes masu juyawa daban-daban

● Tallafin ɗanyen fakitin da aka tattara, gano, tantancewa, taƙaitaccen ƙididdiga da alama

● Taimakawa don gane marufi mara mahimmanci na isar da zirga-zirgar ababen hawa na Ethernet, yana goyan bayan kowane nau'ikan ka'idodin marufi na Ethernet, da aslo 802.1q/q-in-q, IPX/SPX, MPLS, PPPO, ISL, GRE, PPTP da dai sauransu.

● Abubuwan da aka goyan bayan fakitin fakiti don kayan aikin saka idanu na Binciken BigData, Binciken yarjejeniya, Binciken Sigina, Binciken Tsaro, Gudanar da Hadarin da sauran zirga-zirgar da ake buƙata.

● Goyan bayan binciken kama fakiti na ainihi, gano tushen bayanai

2-Hanyoyin sarrafa zirga-zirgar Hankali

Pure Chip Plus Multicore CPU

240Gbps ikon sarrafa zirga-zirga na hankali

1GE/10GE Mai ɗaukar bayanai

24*1GE/10GE SFP+ tashar jiragen ruwa Rx/Tx sarrafa duplex, har zuwa 240Gbps Traffic Data Transceiver a lokaci guda, don ɗaukar bayanan cibiyar sadarwa, mai sauƙin aiwatarwa.

Kwafi Data

Fakitin da aka kwafi daga tashar jiragen ruwa 1 zuwa tashar jiragen ruwa na N da yawa, ko aka haɗa tashoshin N da yawa, sannan aka kwafi su zuwa tashoshin M da yawa.

Tarin Data
Fakitin da aka kwafi daga tashar jiragen ruwa 1 zuwa tashar jiragen ruwa na N da yawa, ko aka haɗa tashoshin N da yawa, sannan aka kwafi su zuwa tashoshin M da yawa.

Rarraba Bayanai
Rarraba metadata mai shigowa daidai da jefar ko turawa daban-daban sabis na bayanai zuwa abubuwan da ake amfani da su na mu'amala da yawa bisa ga jerin fari, baƙar fata ko ƙayyadaddun ƙa'idodin mai amfani.

Tace Data
Za a iya sauke ko tura rafin bayanai masu shigowa ta aiwatar da ka'idojin fari ko jerin baƙaƙe bisa ga halayen fakiti. Taimako ya dogara ne akan tashar shigarwa, adireshin MAC na tushen / madaidaicin, VLAN ID, filin nau'in Ethernet, tsawon fakiti ko tsayin tsayi, nau'in yarjejeniya na Layer 3, tushen / adireshin IP address ko sashin adireshin (launi na waje) tushen, adireshin IP na manufa ko sashin adireshin (layin ciki na rami kamar GRE / VxLAN), TCP / UDP Source / tashar tashar tashar tashar tashar tashar jiragen ruwa, IP na tashar tashar tashar tashar tashar tashar jiragen ruwa, IP na tashar tashar tashar tashar tashar tashar jiragen ruwa. (UDB) da sauran filayen ana la'akari da su don ƙara biyan buƙatun turawa na sa ido na tsaro na cibiyar sadarwa daban-daban, nazarin tsaro, nazarin kasuwanci, bincike na aiki da kiyayewa da sauran yanayin sa ido kan zirga-zirga.

Ma'aunin Load

Dangane da bayanin MAC, bayanin IP, lambar tashar tashar jiragen ruwa, yarjejeniya da sauran halayen Layer L2-L7 na firam, Hash algorithm da algorithm rabon nauyi dangane da zaman an yi amfani da su don tabbatar da amincin zaman bayanan rafi da na'urar sauraron ketare ta karɓa, kuma membobin rukunin tashar tashar jiragen ruwa na iya jujjuya su (link DOWN) ko shiga (link UP) lokacin da mahaɗin ya canza. Ƙungiyar karkatarwa ta atomatik tana sake rarraba zirga-zirga ta atomatik don tabbatar da ma'aunin nauyi mai ƙarfi na zirga-zirgar fitarwa ta tashar jiragen ruwa.
● Yana goyan bayan Hash-based homomorphic load daidaita fitarwa: SIP, DIP, SIP + SP, DIP + DP, SIP + DIP, SIP + SP + DIP + DP+ ladabi
● Yana goyan bayan abubuwan HASH na duniya
● Yana goyan bayan abubuwan HASH rafi mai zaman kansa
● Yana goyan bayan jadawalin zagaye-Robin na daidaita ma'aunin nauyi
● Yana goyan bayan daidaitattun kayan aiki na HASH na daidaita kayan aikin shunt
● Yana goyan bayan aika zirga-zirgar shigarwar tushe iri ɗaya zuwa ƙungiyoyin tashar jiragen ruwa masu fitarwa da yawa a lokaci guda (har zuwa ƙungiyoyi 32 suna goyan baya)
● Yana goyan bayan zirga-zirgar shigar da tashar tashar jiragen ruwa da yawa don haɗawa da aika zuwa ƙungiyoyin tashar jiragen ruwa masu fitarwa da yawa a lokaci guda (har zuwa ƙungiyoyin 32 suna tallafawa)

VLAN Tagged

VLAN ba shi da alama

Maye gurbin VLAN

Takaddar tambarin VLAN mai goyan baya, maye gurbin VLAN da alamar VLAN yana ƙara don Layer ɗaya ko yadudduka biyu na fakitin bayanan asali, kuma yana iya aiwatar da manufofin fitarwar zirga-zirga bisa ga tsarin mai amfani.

Yanke bayanai
slicing tushen manufofin tallafi (64/96/128/192/256/512 bytes zaɓi na zaɓi) na ɗanyen bayanai, kuma ana iya aiwatar da manufofin fitar da zirga-zirga bisa ga tsarin mai amfani.

Fakitin Protocol Gane

Ana goyan bayan ta atomatik gano nau'ikan yarjejeniyar rami iri-iri VxLAN/NVGRE/IPoverIP/MPLS/GRE, da sauransu, Ana iya ƙaddara shi gwargwadon bayanin martabar mai amfani gwargwadon fitowar ramin rami na ciki ko na waje halaye.
Yana iya gane fakitin alamar VLAN, QinQ, da MPLS
● Zai iya gane VLAN na ciki da na waje
● Ana iya gano fakitin IPv4/IPv6
Za a iya gano VxLAN, NVGRE, GRE, IPoverIP, GENEVE, fakitin rami na MPLS
● Ana iya gano fakitin IP da aka raba

Kashe Fakitin Ramin Ruwa
Goyan bayan fakitin fakitin rami mai goyan baya, wanda zai iya saita adireshin ip/mask akan tashar shigar da zirga-zirga, kuma kai tsaye aika zirga-zirgar da ke buƙatar tattarawa a cikin hanyar sadarwar mai amfani zuwa tashar sayan na'urar ta hanyoyin ɓoye rami kamar GRE.

Lokaci Stamping
Ana goyan bayan aiki tare da uwar garken NTP don gyara lokaci da rubuta saƙon a cikin fakiti a cikin nau'in alamar lokaci mai alaƙa tare da alamar tambarin lokaci a ƙarshen firam, tare da daidaiton nanoseconds.

Kama fakiti
Ayyukan ɗaukar fakitin tallafi, wanda zai iya tallafawa tashoshin kasuwanci don ɗaukar fakiti bisa ga ƙa'idodin tacewa, kuma bayanan da aka kama suna cikin tsarin PCAP. Ana iya sauke bayanan da aka kama don bincike ta kayan aikin bincike na ɓangare na uku.

Ganuwa na zirga-zirga
An goyi bayan duk hanyar hanyar haɗin yanar gizo ta hanyar haɗin yanar gizo daga karɓa da ɗauka, ganowa da sarrafawa, tsarawa da gudanarwa, rarraba fitarwa za a iya gane. Ta hanyar haɗin gwiwar abokantaka na abokantaka, siginar bayanan da ba a iya gani yana canzawa zuwa ganuwa, mai iya sarrafawa da sarrafawa ta hanyar hangen nesa da yawa da kuma latitude mai yawa na tsarin tsarin zirga-zirga, rarraba zirga-zirgar hanyar sadarwa, yanayin sarrafa fakiti, yanayin zirga-zirga daban-daban, da dangantaka tsakanin zirga-zirga da lokaci ko kasuwanci.

Shigar da Fiber guda ɗaya da fitarwa

Goyan bayan 24 masu zaman kansu 10G Ethernet musaya, da kuma TX/RX na kowane mai dubawa na iya aiwatar da shigarwar fiber-fiber/fitarwa mai yawa. Lokacin da aka yi amfani da hanyar RX ta tashar jiragen ruwa azaman shigarwar tsagawar gani, ana iya amfani da TX na tashar tashar guda ɗaya azaman fitarwa bayan dabarun kwafin zirga-zirga / tarawa / tsaga. Zai iya inganta amfani da tashar jiragen ruwa na kayan aiki da adana jari ga masu amfani.

1+1 Tsarin Wutar Lantarki (RPS)
Goyan bayan 1+1 Dual Redundant Power System. Dual samar da wutar lantarki m wutar lantarki, AC 100 ~ 240V da DC 48V na zaɓi. Rashin wutar lantarki na iya tabbatar da mafi tsayin lokacin hanyar haɗin yanar gizo kyauta.

3-Mylinking™ Network Fakitin Dillali Tsarin Tsarin Aikace-aikace na Musamman

3.1 Mylinking™ Network Fakitin Dillali Mai Tsaya Tsakanin Tarin Maimaitawa/Aikace-aikacen Tara (kamar yadda mai zuwa)

3.2 Mylinking™ Network Packet Broker Haɗin Jadawalin Jadawalin Aikace-aikacen (kamar yadda mai zuwa)

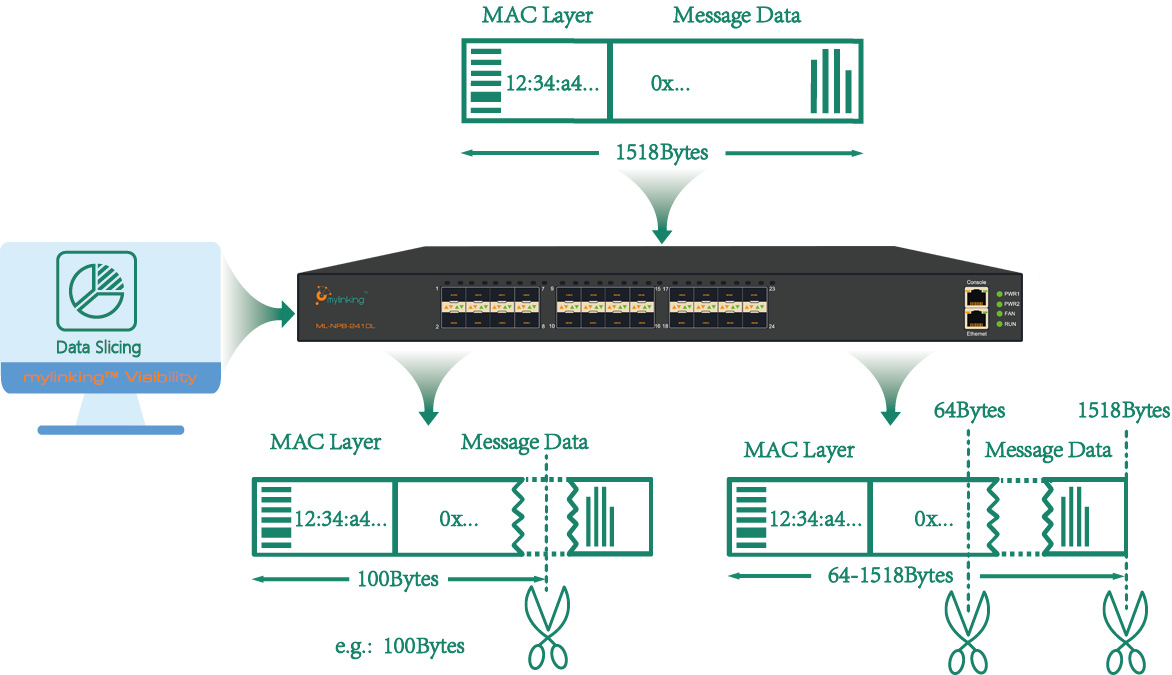

3.3 Mylinking™ Network Packet Broker Data Slicing Application (kamar mai biyowa)

3.4 Mylinking™ Network Fakitin Dillali Data VLAN Tagged Aikace-aikacen (kamar yadda mai zuwa)

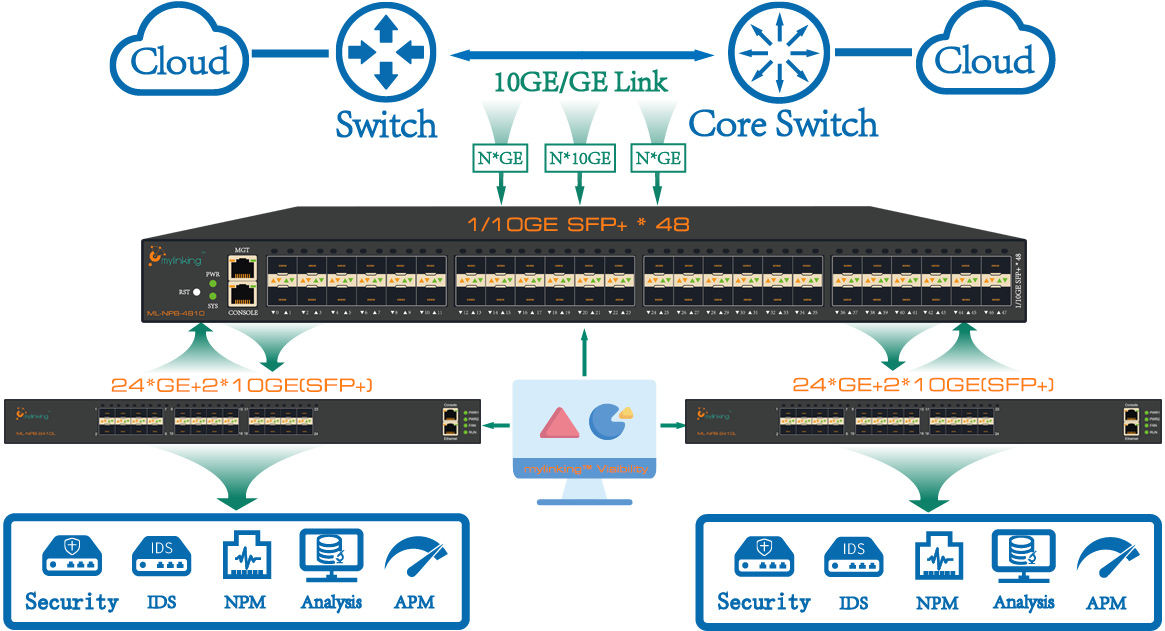

3.5 Mylinking™ Network Packet Broker Aikace-aikacen Samun Dama don Gudanar da Gudun Yanar Gizo / Maimaitawa/Tari (kamar haka)

4-Bayyana

MLSaukewa: NPB-2410L Mylinking™ Network Fakitin Dillalan TAP/NPB Ayyuka
Interface Interface	10GE	24 * SFP + Ramin; Taimakawa 10GE / GE; SM/MM Fiber
Interface Interface	Interface MGT ba-da-Band	1* 10/100/1000M Tashar Wutar Lantarki
Yanayin turawa	10G Yanayin gani	Goyan bayan 24 bidirectional 10GE mahada cikakke kama
	Yanayin Tsayin Madubi 10G	Taimakawa abubuwan shigar da zirga-zirga har zuwa madubi 24
	Single Fiber Tx/Rx	Tallafawa
	Kwafin zirga-zirga / tarawa / rarrabawa	Tallafawa
	Adadin hanyoyin haɗin kai madubi don maimaitawa/ tarawa	1->N Links kwafin zirga-zirga (N<24) N->1 Haɗin zirga-zirgar zirga-zirga (N<24) Rukunin G (M-> N Link) maimaita zirga-zirga da tarawa [G * (M + N) <24]
	Fakiti tace	Taimako dangane da tashar shigar da tashar, tushen / adireshin MAC, VLAN ID, filin nau'in Ethernet, tsayin fakiti ko tsayin tsayi, nau'in yarjejeniya na Layer 3, tushen / madaidaicin adireshin IP ko sashin adireshi (launi na waje) tushen, adireshin IP na gaba ko sashin adireshin (layin ciki na rami kamar GRE / VxLAN), TCP / UDP Filayen kamar su tashar tashar jiragen ruwa, kewayon IPv6 ko tashar tashar tashar jiragen ruwa, tashar tashar tashar ruwa, tashar al'ada ta IPv6. lambar sa hannu (UDB), da sauransu.
	Yankan fakiti	Yana goyan bayan slicing fakiti bisa ga tuple, kuma tsawon ajiyar yanki shine 4/96/128/192/256/512 bytes.
	Lokaci-stamping	Yana goyan bayan ƙara Timesstamps zuwa fakiti
	Fakitin Identity	● Gano fakitin alamar VLAN, QinQ, MPLS ● Gano Layer na ciki, VLAN na waje ● Gano fakitin IPv4/IPv6 ● Gano VxLAN, NVGRE, GRE, IPoverIP, GENEVE, fakitin rami na MPLS ● Gano fakitin IP da aka raba
	Kashe Fakitin Ramin Ruwa	Yana goyan bayan Ƙarshen Tunnel na GRE
	Canjin VLAN	Goyi bayan cire VLAN Tag (mafi girman yadudduka 2), maye gurbin VLAN, da ƙara Tag VLAN
	Ma'aunin Load	Tallafawa
	MTU	Yana goyan bayan gyare-gyaren kewayon 18 ~ 16127
	Fakiti masu ɗaukar hoto	Yana goyan bayan tashoshin sabis don kama fakiti bisa ga ƙa'idodin tacewa
	Gudanarwar hanyar sadarwa ta IP/WEB	Tallafawa
	SNMP Network Management	Tallafawa
	TELNET/SSH Gudanarwar hanyar sadarwa	Tallafawa
	SYSLOG Protocol	Tallafawa
	Ayyuka	240Gbps
	Yawan Dokokin	8000 dokoki
Wutar Lantarki (1+1 Tsarin Wutar Lantarki-RPS)	Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙarƙashin Ƙira	AC-100~240V/DC-48V [Na zaɓi]
	Matsakaicin Ƙarfin Ƙarfi	AC-50Hz / 60Hz
	Ƙididdigar shigarwa na Yanzu	AC-3A/DC-10A
	Ƙarfin Aikin Aiki	170W
Muhalli	Yanayin Aiki	0 - 50 ℃
	Ajiya Zazzabi	-20-70
	Humidity Mai Aiki	10% -95%, ba mai tauri
Kanfigareshan mai amfani	Kanfigareshan Console	Interface RS232, 115200, 8, N, 1
Kanfigareshan mai amfani	Tabbatar da kalmar wucewa	Tallafawa
Rack Height	Rack Space (U)	1U 440mm (Nisa)44mm (Tsauri)300mm (zurfin)
